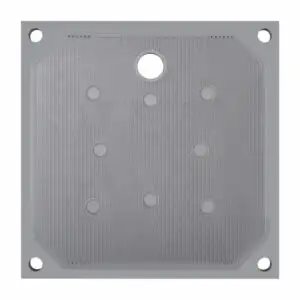

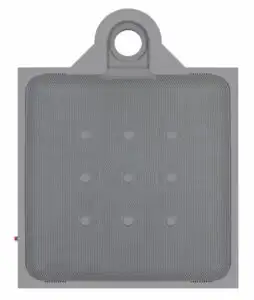

Customized Filter Plate

Quick Details

Supply Ability

Supply Ability 500 Piece/Pieces per Week

Packaging & Delivery

Packaging Details： plastic film winding ,supported by the pallet
Port： Tianjin
Lead Time: according to the order quatity

Company Information

Established in 1998, Jingjin Environmental Protection Inc. is a comprehensive provider of environmental protection services, specializing in the production of filtration equipment, offering complete filter technology solutions, and managing environmental protection projects from construction to operation. Jingjin holds a prominent position as the vice-president unit of the China Environmental Protection Industry Association and is the primary drafter of national standards for filter presses and filter plates. For twelve consecutive years, Jingjin has maintained the largest production capacity and sales volume of filter presses globally, with its products reaching 123 countries and regions. The Jingjin trademark has been recognized as a ‘Famous Chinese Trademark’ by the State Administration for Industry and Commerce of China and is protected under the Madrid International Trademark Registration. Water Jiang, the chairman of Jingjin, has been honored as a National Labor Model and National Model Worker.

Jingjin is committed to advancing energy conservation and environmental protection, offering consumers cost-effective products and high-quality professional services. To meet stringent filtration requirements, Jingjin has introduced a complete German filter cloth production line and technology. Leveraging 27 years of filtration expertise, Jingjin employs heavy German rapier looms to weave the finest silk threads into high-density filter cloths with various hole patterns, using a beating-up force of 0.3-3.5 tons after each weft crosses the warp. Jingjin filter cloths feature 50% more filtration holes per unit area compared to other filter cloths, significantly enhancing filtration speed. The cloth is woven under controlled temperature and humidity conditions, eliminating fabric burrs caused by static electricity.

A key innovation is the monofilament filter cloth, which allows filter cakes to automatically detach, solving a longstanding challenge in the industry.

In pursuit of its vision for China, Jingjin strives to become the most influential comprehensive service provider in the global environmental protection sector. With its mission of “Protecting the Environment and Beautifying China” and its green strategy of “Turning sewage into pure water and sludge into resources,” Jingjin offers profound solutions for ecological protection and economic development, ensuring clean water and blue skies for future generations.

Applications of Customized Filter Plate

1.Water quality analysis: used to filter suspended matter in water samples for subsequent chemical composition analysis.
2.Air sampling: used to collect particulate matter in the air for air quality assessment.
3.Food additive detection: used to extract and filter food samples for subsequent chemical analysis.
4.Microbial contamination detection: used to detect the level of microbial contamination in food.
5.Catalyst recovery: used to recover catalyst particles from reaction mixtures.
6.Nanomaterial preparation: used for filtration and purification during the synthesis of nanomaterials.

PP Filter Plate

Jingjin’s filter plates are crafted using polypropylene (PP) material through a precision molding process. The filtration surface is designed with a special channel that ensures smooth operation without any blockages. The composition of Jingjin’s plates includes TPE elastomer, fiberglass, and polypropylene, providing a unique combination of flexibility, toughness, and rigidity. Precision machining at the CNC center ensures that the flatness of each filter plate is less than 25µm, guaranteeing excellent sealing during pressing and preventing any leakage during feeding.

Our plates meet not only the Chinese JB/T4333.3-2005 standard but also the German DIN7129 standard, making them fully compatible with European and American products. Compared to plates manufactured according to national standards, Jingjin’s filtration plates offer a 20% improvement in filtration speed, along with enhanced density, strength, anti-fatigue, and anti-aging properties.

The filter plates can withstand a maximum feeding pressure of 1.6 MPa. They are characterized by their resistance to high temperatures and pressures, corrosion resistance, airtight sealing, short filtering cycles, effective processing, and low cake moisture content.

Recessed Plate

1.Jingjin has developed a variety of filtration plates in different specifications and shapes.
2.Available materials include cast iron, steel Q235, cast steel, stainless steel, cast copper, aluminum alloy, PP, TPE elastomer, EPDM, NBR, and more.
3.Maximum feeding pressure is 3 MPa.
4.Features include high temperature and pressure resistance, excellent sealing and cake washing, anti-corrosion properties, short filtration periods, and reduced cake moisture.

Membrane Plate

1.Membrane plates deliver outstanding filtration results and significant benefits.
2.The solid content can be controlled through squeezing pressure.
3.Double squeezing after filtration completion enhances the solid content of the cake.
4.Membrane plates operate on a “low pressure for filtration, higher pressure for squeezing” principle, extending lifespan and reducing energy consumption.
5.They offer improved washing effects, reduced washing time, savings on washing liquid, and enhanced product quality.
