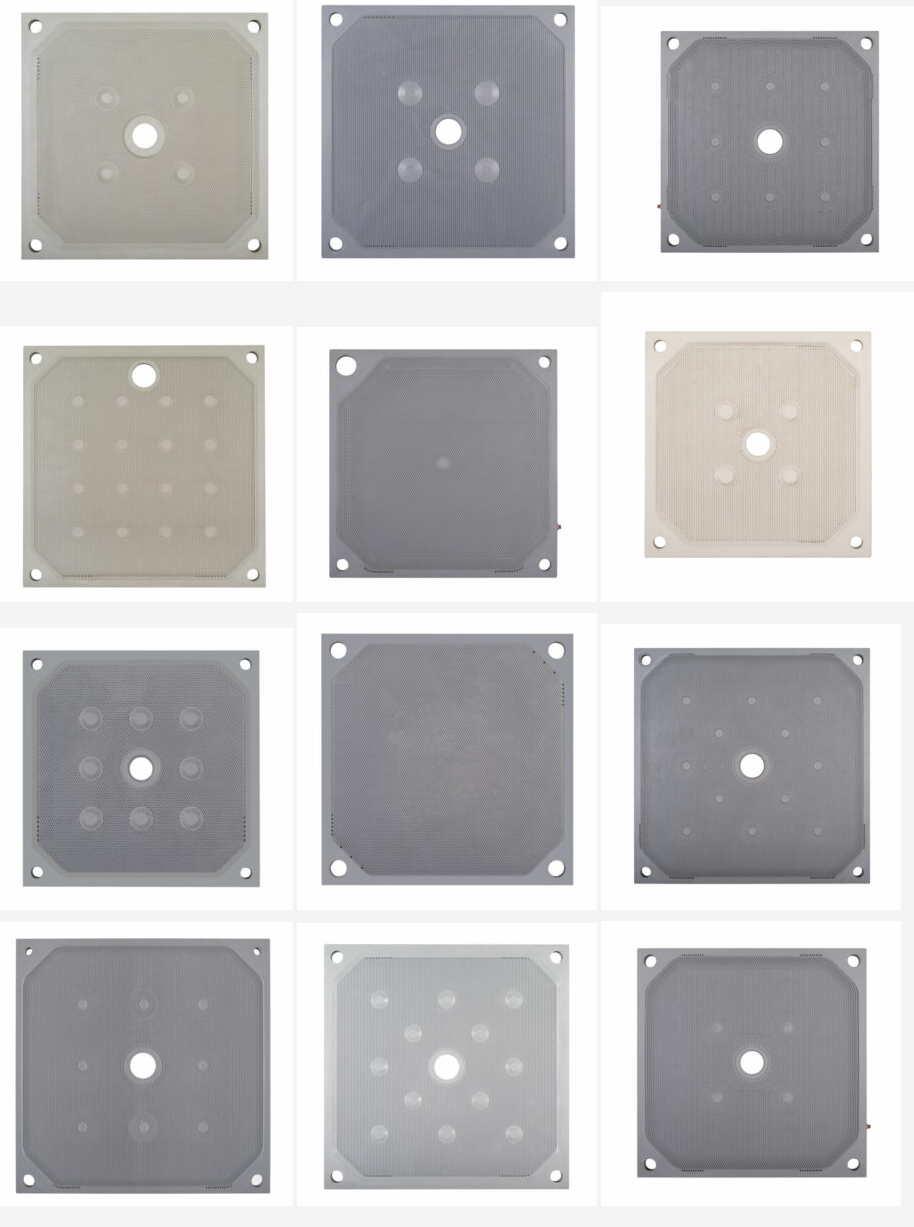

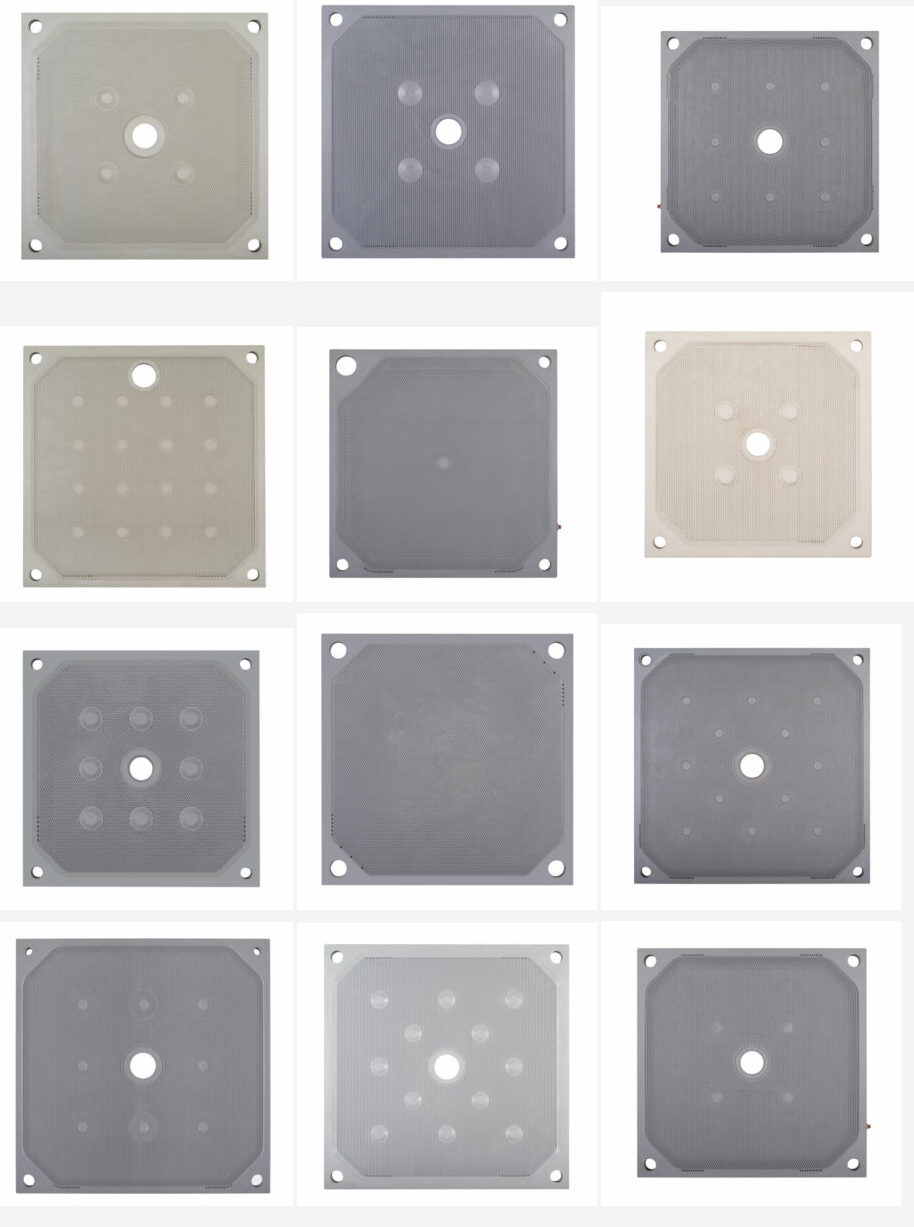

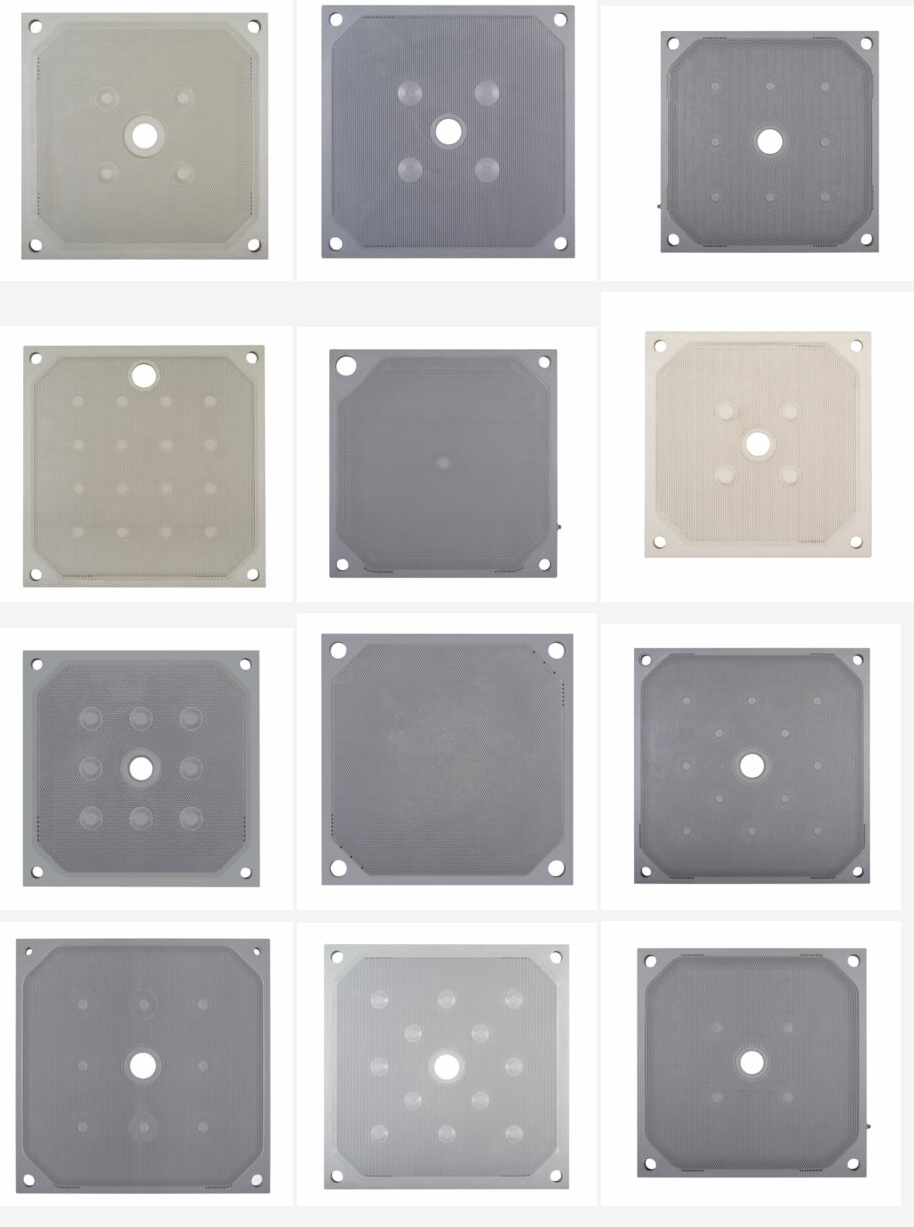

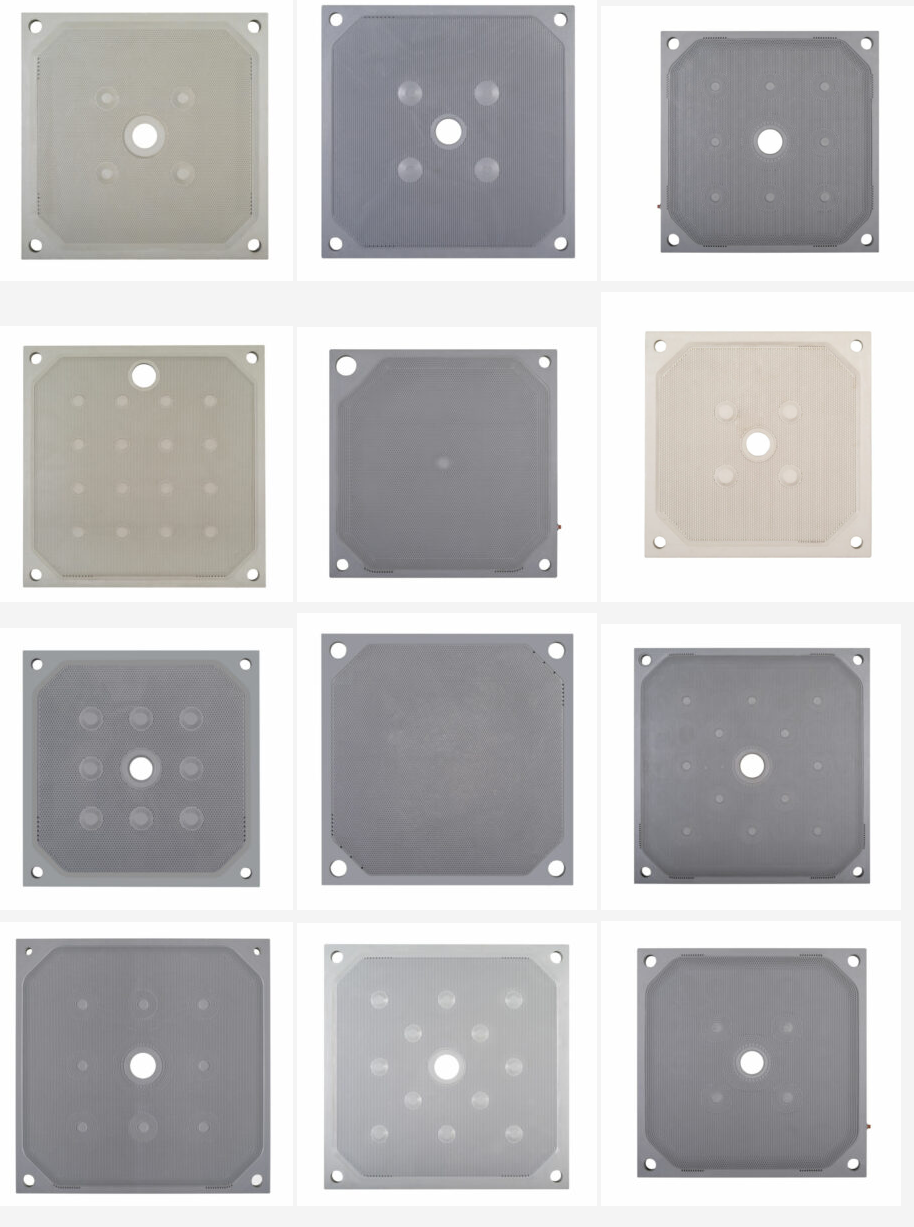

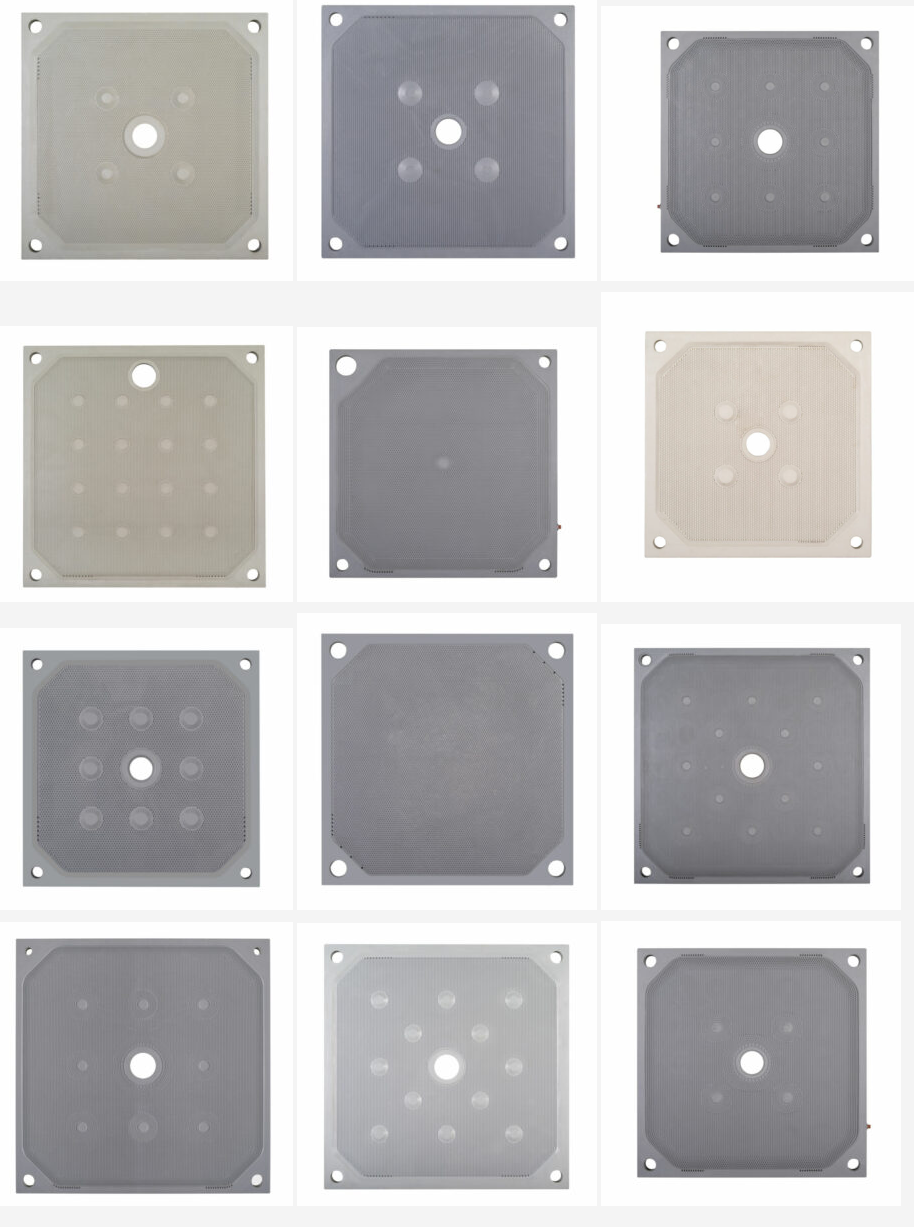

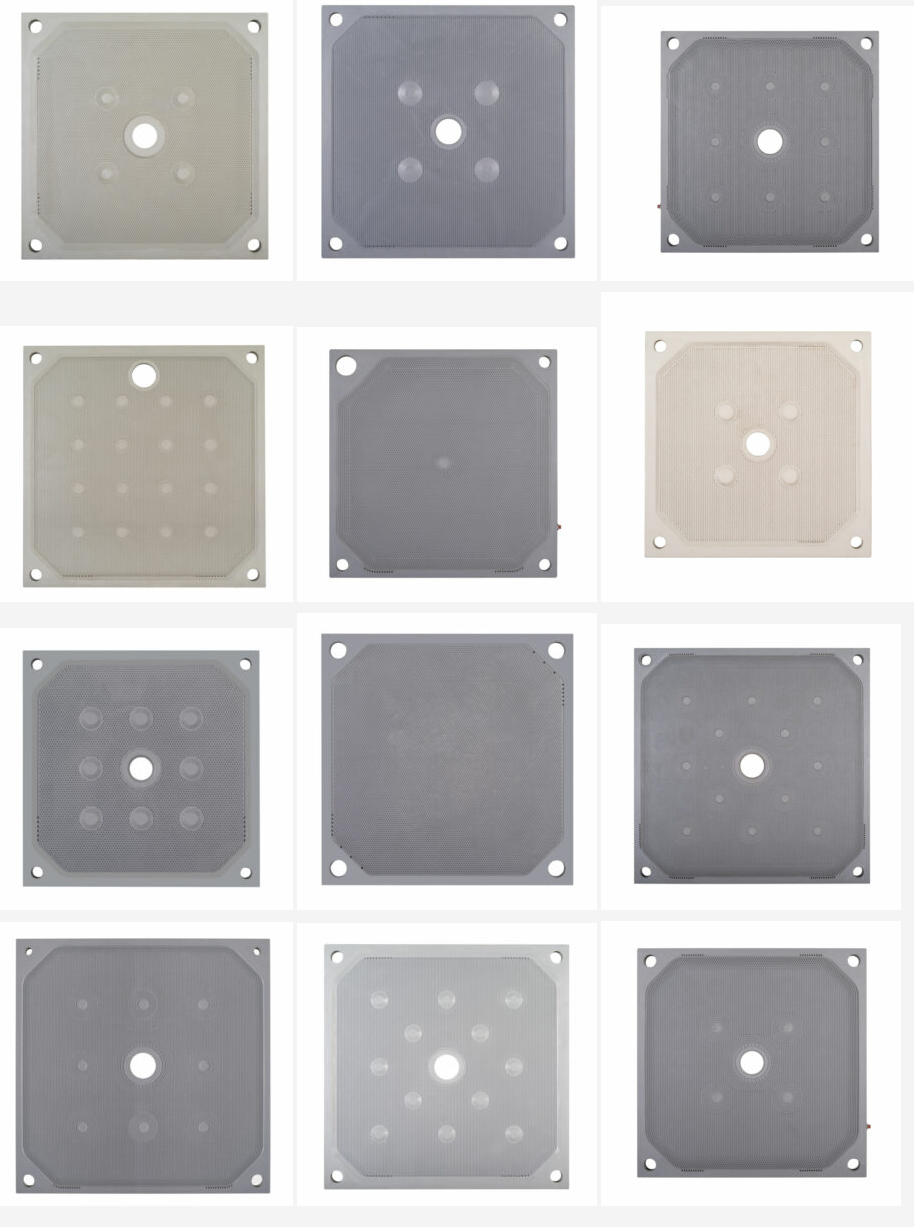

Customized CGR Recessed Plate

Place of Origin:Shandong, China
Brand Name:JINGJIN
Warranty:12 months

For custom product inquiries, please get in touch with us!
Your satisfaction is our guarantee!
Jingjin will always be your reliable partner!

Thumbnail Image

Quick Details

Condition:New
Automatic Grade:Automatic
Production Capacity:500picees /day
Place Of Origin:Shandong, China
Dimension(l*w*h):2000x2000mm
Warranty:One Year
After-sales Service Provided:Engineers Available To Service Machinery Overseas
Certification:Ce And Iso
Plate Thickness:90,
Chamber:17.5,
Cake:35,40,50
Filtration Area:6.7
Filtration Volume:0.119
Weight:200

Supply Ability

Supply Ability:800 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: film winding and supported by pallet.
Port: Tianjin
Lead Time: according to the order quatity

What are the performances of Customized CGR Recessed Plate?

1.High Efficiency: These filter plates are designed to provide high efficiency in separating solids from liquids, making them ideal for demanding filtration applications.
2.Customizability: They can be tailored to fit specific requirements, such as pore size, flow rate, and material compatibility, allowing for optimal performance in various filtration scenarios.
3.Durability: Constructed with robust materials, these filter plates are built to withstand the rigors of continuous operation and harsh environments, ensuring a long service life.
4.Versatility: Suitable for a wide range of applications, including chemical processing, pharmaceuticals, food and beverage, environmental applications, and more.
5.Ease of Maintenance: Designed for ease of cleaning and maintenance, which helps reduce downtime and operational costs.
6.Energy Efficiency: The optimized design can lead to energy savings by reducing the overall energy required for the filtration process.
7.Reliability: With its proven performance and robust construction, this model ensures consistent and reliable operation, which is crucial for maintaining production schedules.

Advantages of Our Recessed PP Filter Plate:

Our filter plates are crafted using polypropylene (PP) material through a precision molding process. The filtration surface is designed with a unique channel system that ensures smooth operation without any blockages.

The composition of JINGJIN plates includes TPE elastomer, fiberglass, and polypropylene, providing a combination of flexibility, toughness, and rigidity. After undergoing CNC machining, the flatness of our filter plates is maintained below 25µm, ensuring excellent sealing during pressing and preventing any leakage during feeding.

Our plates meet not only the Chinese JB/T4333.3-2005 standard but also the German DIN7129 standard, making them fully compatible with European and American products.

Compared to filtration plates manufactured according to national standards, our plates offer a 20% improvement in filtration speed. Additionally, they exhibit enhanced density, strength, fatigue resistance, and anti-aging properties, effectively doubling their performance.

The filter plates can withstand a maximum feeding pressure of 1.6 MPa. They are designed to resist high temperatures and pressures, providing excellent antiseptic and airtight properties. This results in shorter filtering cycles, superior processing outcomes, and lower moisture content in the filter cake.

Speifications Of PP Recessed Plate:

ModelPlate thicknessChamber
mm
Cake
mm
Filtration area (m)2

Filtration volume( m3)Weight
kg
800×8006415300.950.01725
7420400.950.01927
1000×10007017.5351.540.02739
7520401.540.03142
1200×12006815302.300.03448
7317.5352.300.03951
7820402.400.04653
1250×12506815302.400.03757
7317.5352.400.04260
7820403.500.04862.5
1500×15007515303.500.05495
8017.5353.500.06398
8520403.500.070102
9025504.670.0875105
1500×20007515304.670.074131
8017.5354.670.099135
8520404.670.082140
9525504.670.123145
2000×20008515306.700.102192
9017.5356.700.119200
9520406.700.136207
10525506.700.170217

Specifications Of PP Recessed Plate

ModelPlate thickness mmChamber mmCake mmFiltration Area m2Filtration volume m3Weight kg
500×5005012.5250.320.0048
5515300.320.00489
6017.5350.320.005610
630×6305012.5250.570.00711.5
5515300.570.008513.5
6017.5350.570.0116
800×8005512.5250.950.01221.5
6015300.950.01423
6517.5351.540.01726
1000×10005512.5251.540.01928
6015301.540.02330
6517.5352.300.02732
1200×12006012.5252.300.02950
6515302.300.03553
7017.5352.400.04056
1250×12506512.5252.400.03055
7015302.400.03658
7017.5352.400.04260
1500×15007015303.500.05294
7517.5353.500.06197
8020403.500.070100
1600×16007015303.950.059112
7517.5353.950.069114
8020403.950.079116
1500×20007515304.670.070129
8017.5354.670.081132
7520404.670.093136
2000×20007515306.700.095184
8017.5356.700.110192
8520406.700.130196
